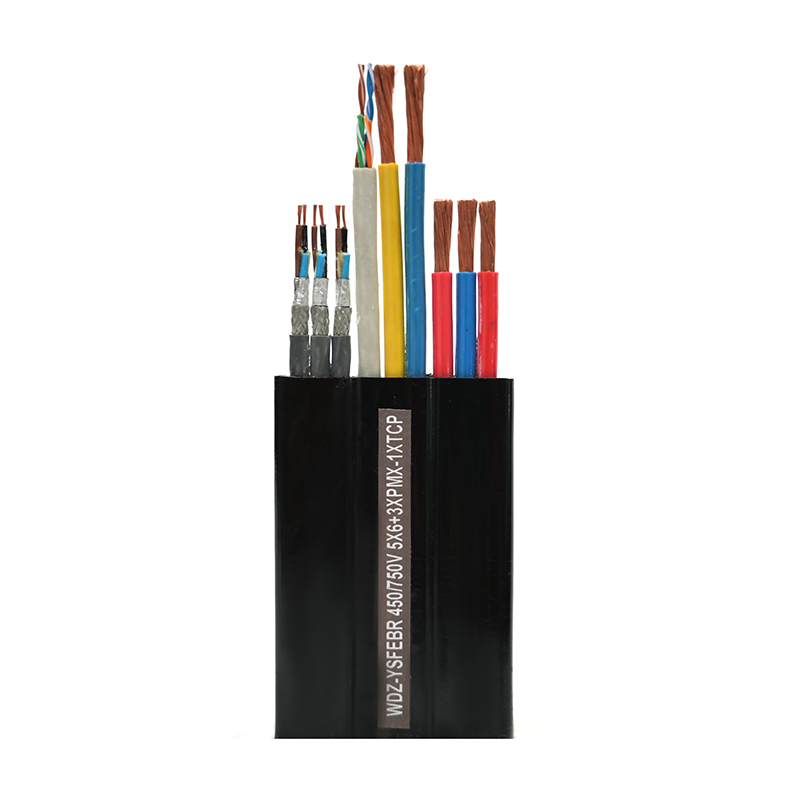

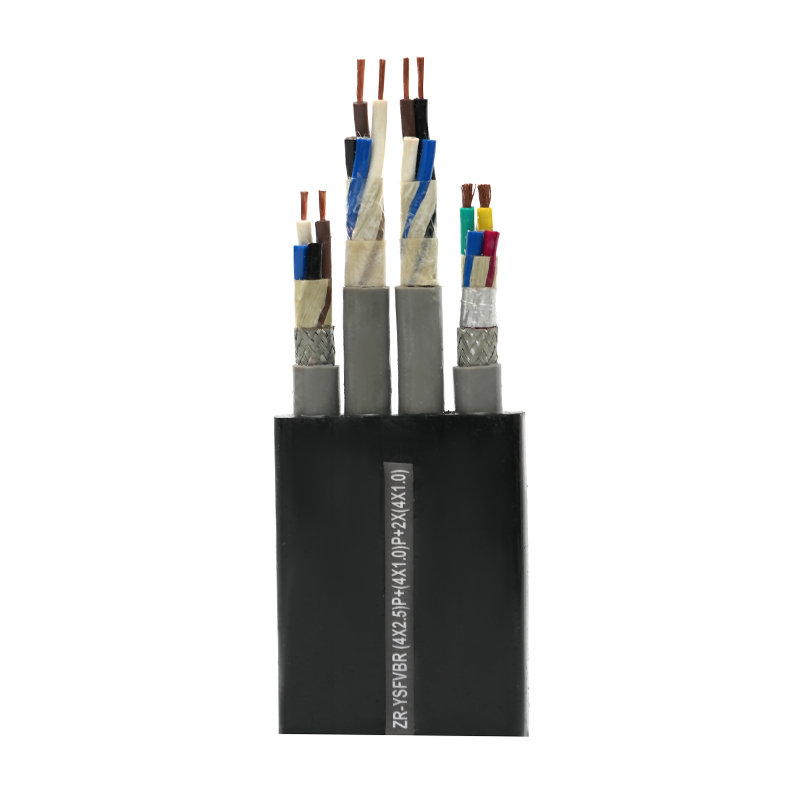

Flat Ribbon cables pro pellicula et televisifica lucendi et scaena Machinery

Product Syntaxis:

Vittae bracteae speciatim dispositae sunt ad cinematographicam et scaenam accendit ac etiam applicationes mechanicas, compactionem quandam, levitatem et integrationem altam. Hae rudentes ex pluribus filis subtilibus dispositis iuxta formam planae formant, flexibiles filo et nexus in spatia limitata expediunt. Summum intensionem lucentium et motus mechanicos sustinere possunt, stabilis ac certa tradenda signum praestandi, ac variis cinematographicis cinematographicis et missionibus scaenicis aptae sunt..

PREV：Power cables for film and television Lighting Equipment and Stage MachineryDEINDE：Nullus proximus articulum
Parameter

Product Characteres et Application:
Productum hoc aptum est ad potentiam et signa in machinis tradendis ut vecturae scaenae et machinae scenicae mobiles cum AC aestimata intentione (Uo/U) 450/750V vel minus. Productum late adhibetur pro cabling structuris in statio televisifica, theatris, ludis stadiis et variis culturae operationibus venues.

Flat vitta cinematographica pro pelliculis ac televisionibus illustrandis et machinis scaenicis prosequitur cum norma Q/3210.

Numerus choros nominalem sectionem transversalem

mm 2

Diametro exterioris approximatis mm Proximus pondus kg / km
ZR-YSFVBR WDZ-YSFEBR
WDZ-YSFUBR 		WDZ-YSFGBR
FH-YSFGBR 		ZR-YSFVBR WDZ-YSFEBR
WDZ-YSFUBR 		WDZ-YSFGBR
FH-YSFGBR
7×1.5 31.6×5.2 27.8×5.2 36.6×6.8 327.0 296.4 428.0
8×1.5 37.0×5.2 31.2×5.2 42.0×6.8 380.8 334.1 490.8
9×1.5 40.0×5.2 34.6×5.2 46.0×6.8 415.4 371.8 539.8
10×1.5 45.4×5.2 38.0×5.2 51.4×6.8 469.2 409.6 602.6
11×1.5 48.4×5.2 42.4×5.2 55.4×6.8 503.7 455.3 651.6
12×1.5 53.8×5.2 45.8×5.2 60.8×6.8 557.6 493.1 714.5
13×1.5 56.8×5.2 49.2×5.2 64.8×6.8 592.1 530.8 763.5
14×1.5 62.2×5.2 52.6×5.2 70.2×6.8 645.9 568.5 826.3
15×1.5 65.2×5.2 56.0×5.2 74.2×6.8 680.4 606.3 875.3
16×1.5 70.6×5.2 60.4×5.2 79.6×6.8 734.3 652.1 938.2
17×1.5 73.6×5.2 63.8×5.2 83.6×6.8 768.8 689.8 987.2
18×1.5 79.0×5.2 67.2×5.2 89.0×6.8 822.6 727.5 1050
19×1.5 82.0×5.2 70.6×5.2 93.0×6.8 857.1 765.3 1099
20×1.5 87.4×5.2 74.0×5.2 98.4×6.8 911 803 1161.9
7×2.5 35.0×6.2 30.8×5.8 41.4×8.0 455.7 396.2 593
8×2.5 40.8×6.2 34.6×5.8 47.4 8.0 528.5 447.4 678.7
9×2.5 44.4×6.2 38.4×5.8 52.2×8.0 580.1 498.7 750.5
10×2.5 50.2×6.2 42.2×5.8 58.2×8.0 652.9 549.9 836.2
11×2.5 53.8×6.2 47.2 5.8 63.0×8.0 704.6 611.9 908
12×2.5 59.6×6.2 51.0×5.8 69.0×8.0 777.3 663.1 993.7
13×2.5 63.2×6.2 54.8×5.8 73.8×8.0 829 714.3 1065.5
14×2.5 69.0×6.2 58.6×5.8 79.8×8.0 901.8 765.5 1151.2
15×2.5 72.6×6.2 62.4×5.8 84.6×8.0 953.4 816.7 1223
16×2.5 78.4×6.2 67.4×5.8 90.6×8.0 1026.2 878.7 1308.7
17×2.5 82.0×6.2 71.2×5.8 95.4×8.0 1077.8 929.9 1380.5
18×2.5 87.8×6.2 75.0×5.8 101.4×8.0 1150.6 981.1 1466.2
19×2.5 91.4×6.2 78.8×5.8 106.2×8.0 1202.3 1032.3 1538
20×2.5 97.2×6.2 82.6×5.8 112.2×8.0 1275.1 1083.5 1623.7
21×2.5 110.2×6.2 93.90×5.8 126.4×8.0 1448.6 1263.5 1775
22×2.5 116.0×6.2 98.00×5.8 132.4×8.0 1522.6 1320.3 1859.3
23×2.5 120.5×6.2 102.10×5.8 138.1 8.0 1584.8 1377.2 1940.5
24×2.5 126.3×6.2 106.20×5.8 144.1×8.0 1658.8 1434 2024.8
25×2.5 130.8×6.2 110.30×5.8 149.8×8.0 1721 1490.8 2106
26×2.5 136.6×6.2 114.40×5.8 155.8×8.0 1795 1547.6 2190.4
27×2.5 1411×6.2 118.50×5.8 161.5×8.0 1857.2 1604.5 2271.6
28×2.5 146.9×6.2 122.60×5.8 167.5×8.0 1931.2 1661.3 2355.9
29×2.5 151.4×6.2 126.70×5.8 173.2×8.0 1993.4 1718.1 2437.1
30×2.5 157.2×6.2 130.80×5.8 179.2×8.0 2067.4 1774.9 2521.4
31×2.5 161.2×6.2 134.9×5.8 184.9×8.0 2129.6 1831.8 2602.6
32×2.5 167.5×6.2 139.00×5.8 190.9×8.0 2203.6 1888.6 2686.9
7×4 42.6×7.2 38.4×6.8 46.2×8.6 669.2 598.6 762.8
8×4 49.4×7.2 43.2×6.8 52.8×8.6 772.8 676.8 871.8
9×4 54.0×7.2 48.0×6.8 58.2×8.6 851.8 755.1 965.8
10×4 60.8×7.2 52.8×6.8 64.8×8.6 955.4 833.4 1074.8
11/4 65.4×7.2 58.8×6.8 70.2×8.6 1034.4 924.3 1168.8
12/4 72.2×7.2 63.6×6.8 76.8×8.6 1138 1002.6 1277.8
13×4 76.8×7.2 68.4×6.8 82.2×8.6 1217.0 1080.9 1371.8
14×4 83.6×7.2 73.2×6.8 88.8×8.6 1320.6 1159.2 1480.8
15×4 88.2×7.2 78.0×6.8 94.2×8.6 1399.6 1237.4 1574.8
16×4 95.0×7.2 84.0×6.8 100.8×8.6 1503.2 1328.4 1683.8
17×4 99.6×7.2 88.8×6.8 106.2×8.6 1582.2 1406.6 1777.8
18×4 106.4×7.2 93.6×6.8 112.8×8.6 1685.8 1484.9 1886.8
19×4 111.0×7.2 98.4×6.8 118.2×8.6 1764.8 1563.2 1980.8
20×4 117.8×7.2 103.2×6.8 124.8×8.6 1868.4 1641.5 2089.8
21/4 131.8×7.2 115.50×6.8 139.6×8.6 2085.2 1875.7 2267.5
22/4 138.6×7.2 120.60×6.8 146.2×8.6 2190 1960.8 2374.9
23/4 144.1×7.2 125.70×6.8 152.5×8.6 2281.2 2045.9 2479.0
24×4 150.9×7.2 130.80×6.8 159.1×8.6 2386 2131 2586.5
25×4 156.4×7.2 135.90×6.8 165.4×8.6 2477.1 2216.1 2690.6
26×4 163.2×7.2 141.00×6.8 172.0×8.6 2581.9 2301.2 2798
27×4 168.7×7.2 146.10×6.8 178.3×8.6 2673.0 2386.3 2902.1
28×4 175.5×7.2 151.20×6.8 184.9×8.6 2777.8 2471.4 3009.5
7×6 48.4×8.0 43.1×7.8 52.0×9.4 895.2 816.1 996.9
8×6 55.8×8.0 48.5×7.8 59.2×9.4 1029.1 923.5 1136.2
9×6 61.4×8.0 53.9×7.8 65.6×9.4 1140.7 1031 1264.6
10×6 68.8×8.0 59.3×7.8 72.8×9.4 1274.6 1138.4 1403.9
11×6 74.4×8.0 66.0×7.8 79.2×9.4 1386.2 1261.5 1532.3
12×6 81.8×8.0 71.4×7.8 86.4×9.4 1520.1 1369 1671.6
13×6 87.4×8.0 76.8×7.8 92.8×9.4 1631.6 1476.4 1800
14×6 94.8×8.0 82.2×7.8 1000×9.4 1765.5 1583.8 1939.3
15×6 100.4×8.0 87.6×7.8 106.4×9.4 1877.1 1691.3 2067.7
16×6 107.8×8.0 94.3×7.8 113.6×9.4 2011 1814.4 2207
17×6 113.4×8.0 99.7×7.8 120.0×9.4 2122.6 1921.8 2335.3
18×6 120.8×8.0 105.1×7.8 127.2×9.4 2256.5 2029.3 2474.6
19×6 126.4×8.0 110.5×7.8 133.6×9.4 2368.1 2136.7 2603.0
20×6 133.8×8.0 115.9×7.8 140.8×9.4 2502 2244.1 2742.3
21×6 148.8×8.0 128.90×7.8 156.6×9.4 2759.5 2529.6 2950.9
22×6 156.2×8.0 134.60×7.8 163.8×9.4 2894.5 2644.8 3088.3
23×6 162.7/8.0 140.30×7.8 171.1×9.4 3019.1 2759.9 3226.9
24×6 170.1×8.0 146.00×7.8 178.3×9.4 3154.2 2875.1 3364.2
25×6 176.6×8.0 151.70×7.8 185.6×9.4 3278.7 2990.2 3502.8
26×6 184.0×8.0 157.40×7.8 192.8×9.4 3413.8 3105.4 3640.2
7×10 61.5×10.3 56.7×10.3 67.9×12.1 1423.2 1346.5 1624.3
8×10 70.6×10.3 63.8×10.3 77.2×12.1 1631.5 1522.9 1849.3
9×10 77.9×10.3 70.9×10.3 85.7×12.1 1811.1 1699.3 2060.3
10×10 87.0×10.3 78.0×10.3 95.0×12.1 2019.4 1875.7 2285.3
11×10 94.3×10.3 86.9×10.3 103.5× 12.1 2199.0 2080.8 2496.3
12×10 103.4×10.3 94.0×10.3 112.8×12.1 2407.3 2257.2 2721.3
13×10 110.7×10.3 101.1×10.3 121.3×12.1 2586.9 2433.6 2932.3
14×10 119.8×10.3 108.2×10.3 130.6×12.1 2795.2 2610 3157.3
15×10 127.1×10.3 115.3×10.3 139.1×12.1 2974.8 2786.4 3368.3
16×10 136.2×10.3 124.2×10.3 148.4×12.1 3183.1 2991.5 3593.3
17×10 143.5×10.3 131.3×10.3 156.9×12.1 3362.7 3167.9 3804.3
18×10 152.6×10.3 138.4×10.3 166.2×12.1 3571 3344.3 4029.3
19×10 159.9×10.3 145.5×10.3 174.7×12.1 3750.6 3520.7 4240.3
20×10 169.0×10.3 152.6×10.3 184.0×12.1 3958.9 3697.1 4465.3
