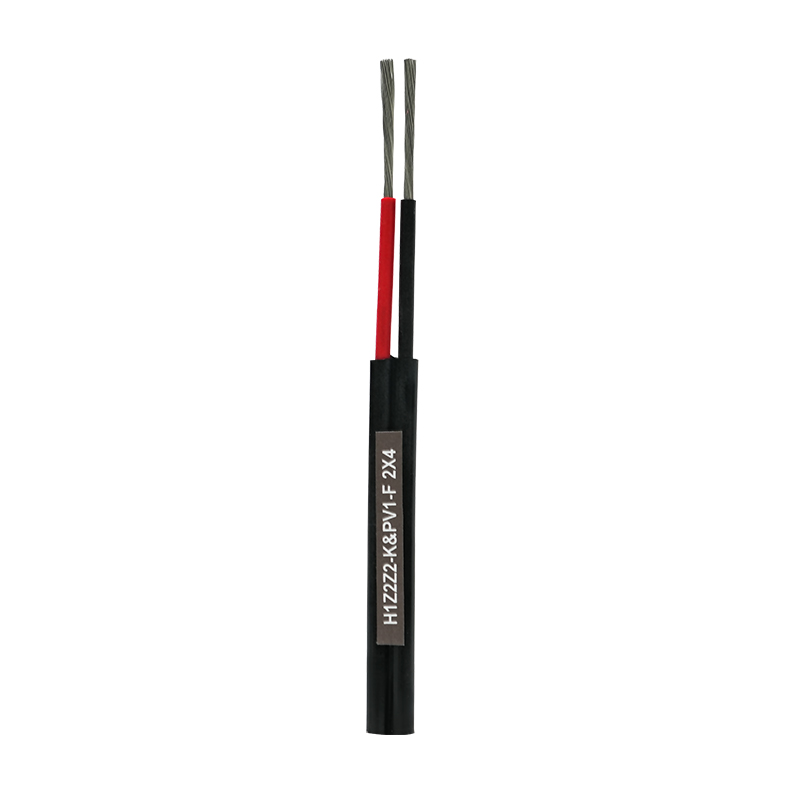

Photovoltaic cables

Usus Producti:

Funes photovoltaici speciales sunt funes ad systemata photovoltaica solaris destinati, resistentia tempestatum featurandi, resistentia UV, resistentia abrasionis. Possunt stabiliter operari in asperis ambitibus ad periodos extensos, obstantibus impactibus gravium et minorum temperaturarum necnon humiditatis mutationes. Funes photovoltaici speciales insulationes materiae et vaginae utuntur ut senescentis solis ac gravibus tempestatum directis effectibus efficaciter resistant, efficax et tuta tradenda energiae electricae ad inverters, energiae repositionis machinas vel craticulas procurans. Hae rudentes etiam ad salutem pertinentes signa et certificationes internationales concurrunt, eosque clavem componentem ad systemata generationis photovoltaicae certae et efficientis potentiae aedificandae..

Wire Gauge Amp Ratings: 6, 8 Gauge and 100 Amp Service
06 Jul, 2026
Filum Gauge et Amp Rating: Questus par Ius Omnis circuitus electricas ab uno fundamentali connubio dependet: coniecturam conductor *is et amperage quaesitum est ad portandum. Illam geminam iniuriam in ...
Disce plus
Wire Size and Amperage Charts: Ampacity, Gauge et Lond Guide
01 Jul, 2026
Moles et Amperage Rating: Quid enim determinat numerum Amperage filum, quod ampacity vocatur, est maxima vena quae continue ferre potest sine excedente limite temperaturae tutae insulationis. Non est unus num...
Disce plus
Electrical Wire Size Chart: NEC Ampacity, Hot Tub & Underground Wiring
23 Jun, 2026
Quid Determinat Service Aditus Conductor Size Magnitudo servitii conductores introitus dependet a summa ratione onus habitaculi vel aedificii expressa in amperes, secundum mo...
Disce plus
Magnitudo et Ampacity Guide: AWG chartis pro 15A ad 100A Circuitus
15 Jun, 2026
Wire Cange et Ampacity: Core Relatio Securatio filum electrica principium directum sequitur: filum quo crassius, eo plus currenti tuto portare potest. In American Wire Cange (AWG) ratio, numeri in reverse- op...
Disce plus
Wire Ampacity, Sizing and Cable Types: NEC Reference and Practical Guide
08 Jun, 2026
Quid est Ampacity minimum Circuit? Minimum ambitus ampacitatis (MCA) est capacitas minima currentis-ferentis ambitus chirurgiae necessariae ut tuto potiatur specifica pars instrumenti. Valor calculi est - non...
Disce plus

exemplar	Specification	Diametros funis exterioris approximatis (mm)	Proximus funem pondus Kg/Km	20℃ Conductor dc resistentia Ω/Km	Abscise A
					Uno-core funem in aere pendentem	Uno-coro funis in superficie objecti	Plures funes adjacentes in superficie rei ponuntur


PVI-F	1×1.5 mm²	4.4	31.8	13.7	31	30	viginti quattuor
PVI-F	1×2.5 mm²	4.8	42.7	8.21	42	40	33
PVI-F	1×4 mm²	5.3	57	5.09	57	54	45
PVI-F	1×6 mm²	5.9	77.5	3.39	72	69	58
PVI-F	1×10 mm²	6.8	117.3	1.95	98	96	80
PVI-F	1×16 mm²	9.3	193.2	1.24	132	130	107
PVI-F	1×25 mm²	11.1	287.8	0.795	183	174	138
PVI-F	1×35 mm²	12.4	381.1	0.565	227	215	171
PVI-F	1×50 mm²	14.6	544.1	0.393	287	273	209
PVI-F	2×1.5 mm²	4.4×9.0	63.7	13.7	31	30	viginti quattuor
PVI-F	2×2.5 mm²	4.8×9.8	85.4	8.21	42	40	33
PVI-F	2×4 mm²	5.3×10.8	114.1	5.09	57	54	45
PVI-F	2×6 mm²	5.9×12.0	154.9	3.39	72	69	58
PVI-F	2×10 mm²	6.8×13.8	234.6	1.95	98	96	80
PVI-F	2×16 mm²	9.3×18.8	378.8	1.24	132	130	107
PVI-F	2×25 mm²	11.1×22.4	566.1	0.795	183	174	138
PVI-F	2×35 mm²	12.4×25	751.1	0.565	227	215	171
PVI-F	2×50 mm²	14.6×29.4	1074.7	0.393	287	273	209
H1Z2Z2-K	1×1.5 mm²	4.8	35.9	13.7	31	30	viginti quattuor
HJZ222-K	1×2.5 mm²	5.2	47.2	8.21	42	40	33
HJZ222-K	1×4 mm²	5.7	61.9	5.09	57	54	45
HJZ222-K	1×6 mm²	6.3	82.9	3.39	72	69	58
HJZ222-K	1×10 mm²	7.2	123.5	1.95	98	96	80
HJZ222-K	1×16 mm²	9.7	201.6	1.24	132	130	107
HJZ222-K	1×25 mm²	11.7	303.1	0.795	183	174	138
HJZ222-K	1×35 mm²	13.2	404.1	0.565	227	215	171
HJZ222-K	1×50 mm²	15.4	571	0.393	287	273	209
HJZ222-K	2×1.5 mm²	4.8×9.8	71.8	13.7	31	30	viginti quattuor
HJZ222-K	2×2.5 mm²	5.2×10.6	94.3	8.21	42	40	33
HJZ222-K	2×4 mm²	5.7×11.6	123.8	5.09	57	54	45
HJZ222-K	2×6 mm²	6.3×12.8	165.7	3.39	72	69	58
HJZ222-K	2×10 mm²	7.2×14.6	247	1.95	98	96	80
HJZ222-K	2×16 mm²	9.7×19.6	395.6	1.24	132	130	107
HJZ222-K	2×25 mm²	11.7×23.6	596.6	0.795	183	174	138
HJZ222-K	2×35 mm²	13.2×26.6	797	0.565	227	215	171
HJZ222-K	2×50 mm²	15.4×31.0	1128.6	0.393	287	273	209
62930 IEC 131	1 1.5 mm²	4.8	35.9	13.7	31	30	viginti quattuor
62930 IEC 131	1 2.5 mm²	5.2	47.2	8.21	42	40	33
62930 IEC 131	1 4 mm²	5.7	61.9	5.09	57	54	45
62930 IEC 131	1 6 mm²	6.3	82.9	3.39	72	69	58
62930 IEC 131	1 10 mm²	7.2	123.5	1.95	98	96	80
62930 IEC 131	1 16 mm²	9.7	201.6	1.24	132	130	107
62930 IEC 131	1 25 mm²	11.7	303.1	0.795	183	174	138
62930 IEC 131	1 35 mm²	13.2	404.1	0.565	227	215	171
62930 IEC 131	1×50 mm²	15.4	571	0.393	287	273	209
62930 IEC 131	2×1.5 mm²	4.8×9.8	71.8	13.7	31	30	viginti quattuor
62930 IEC 131	2×2.5 mm²	5.2×10.6	94.3	8.21	42	40	33
62930 IEC 131	2×4 mm²	5.7×11.6	123.8	5.09	57	54	45
62930 IEC 131	2×6 mm²	6.3×12.8	165.7	3.39	72	69	58
62930 IEC 131	2×10 mm²	7.2×14.6	247	1.95	98	96	80
62930 IEC 131	2×16 mm²	9.7×19.6	395.6	1.24	132	130	107
62930 IEC 131	2×25 mm²	11.7×23.6	596.6	0.795	183	174	138
62930 IEC 131	2×35 mm²	13.2×26.6	797	0.565	227	215	171
62930 IEC 131	2×50 mm²	15.4×31.0	1128.6	0.393	287	273	209
